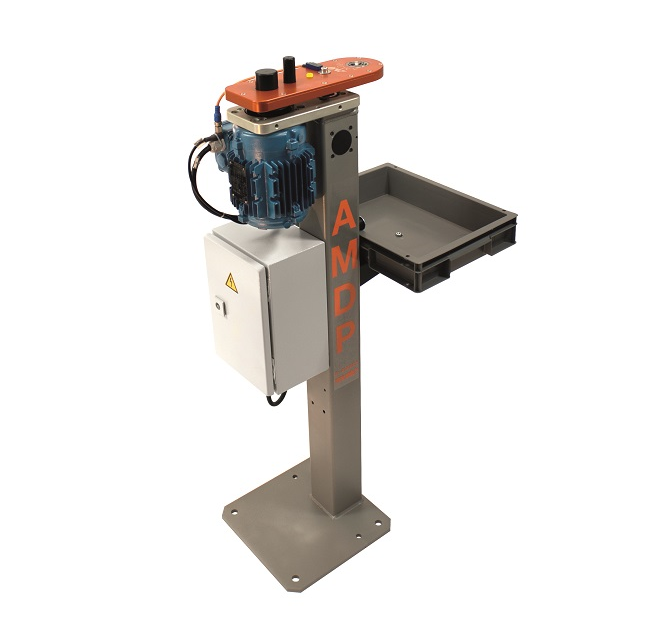

Tip dresser

7820-47FSCGST3

With 30 years of experience, AMDP brings now to the market the new Tip dresser, the reference in productivity for tip dressing.

  • New dressing head – high speed
  • Fast mounting and dismounting of the cutter on the dresser
  • Easy to integrate
  • Adjustable head every 90°
  • Very compact dressing head, which makes it possible to dress all types of guns
  • Adaptable and flexible product for each application

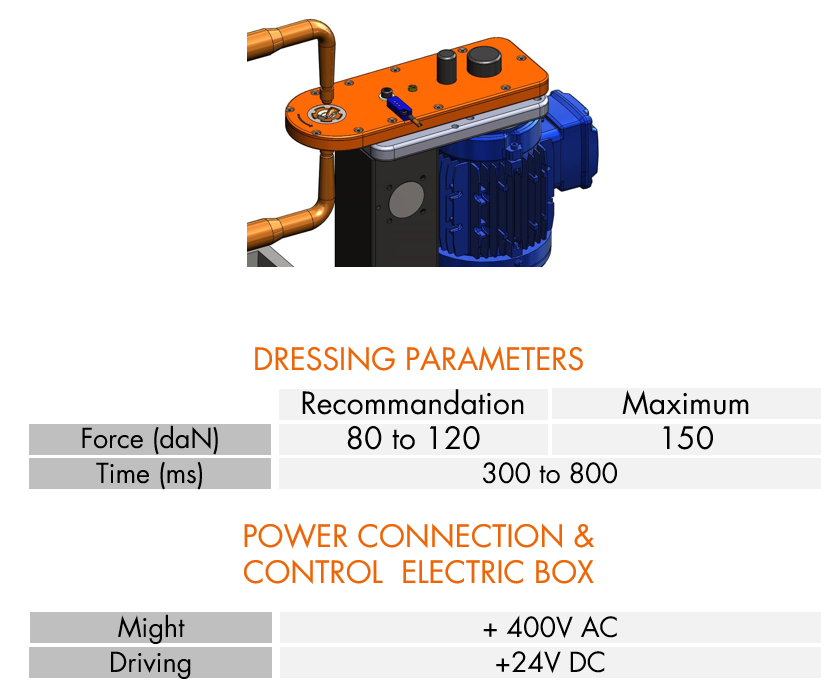

  • Recommended pressure of the gun on the cutter: between 80 and 150 daN depending on the type of gun and electrodes



Demande d’informations

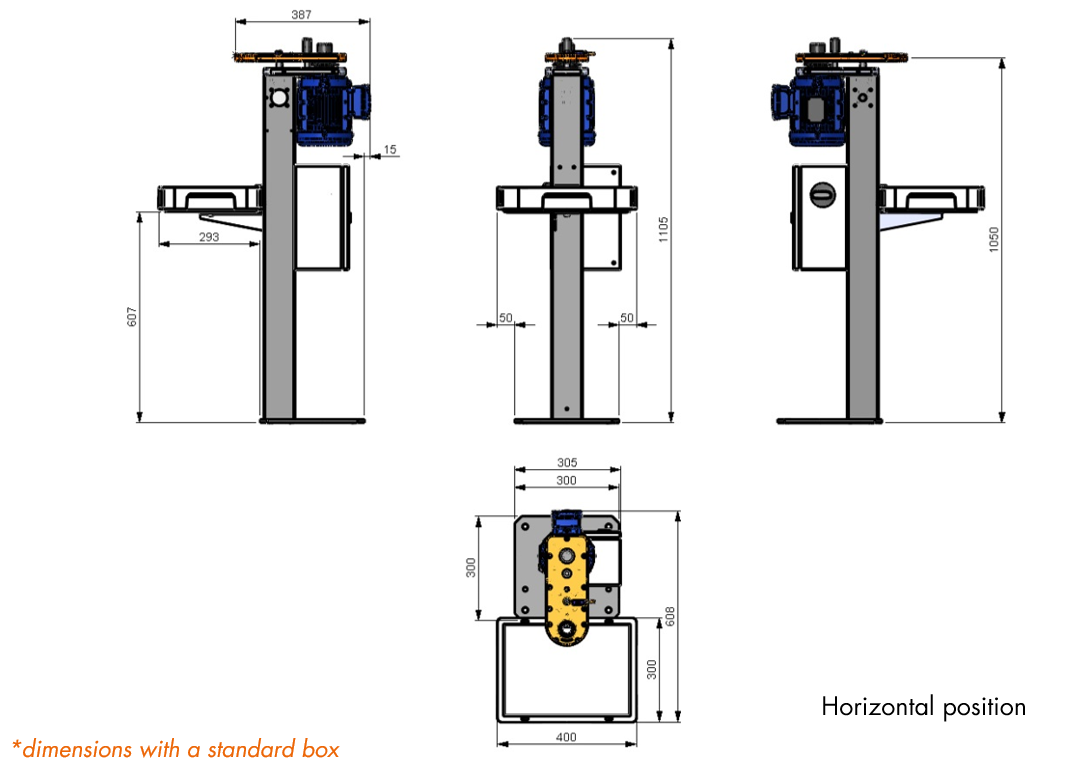

These dressers are mounted on a stand of fixed or adjustable height.

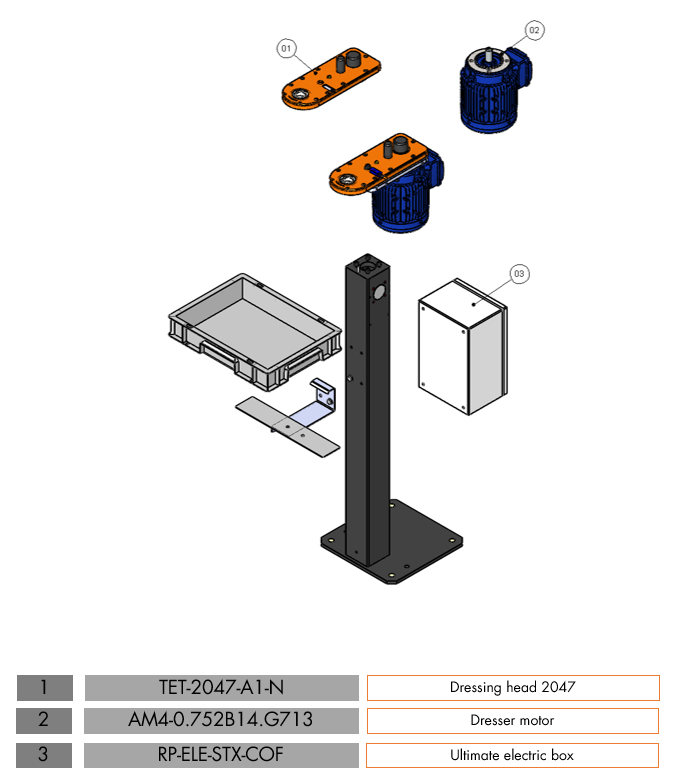

They are made up of :

- 1electric motor which drives the cutter in rotation

- 1 dressing head which bears and drives the cutter

- 1 electric control unit

- 1 cutter rotation controller

- 1 swarf basin of adjustable height, and a chip funnels

These dressers are designed to be used and to dialogue with a robot controller unit. These is however an autonomous version for the manual guns.

Productivity & control

  • Fast dressing of the electrodes: improve the vehicule production / hours.
  • Rotation controller on the dressing head
  • Shine control (optional)

Optimization & security

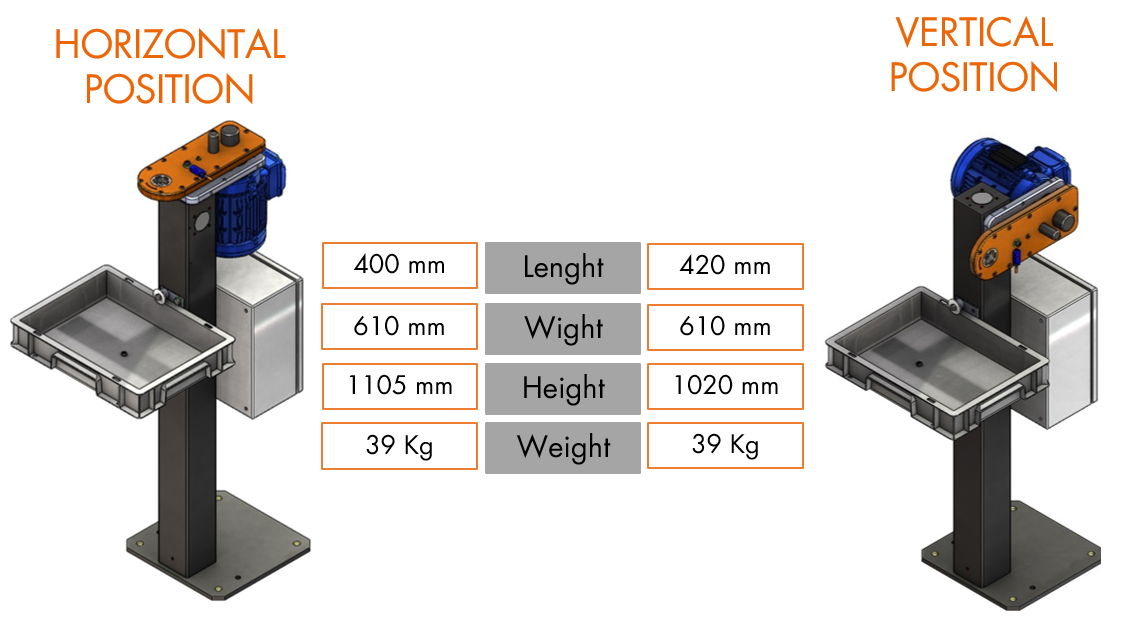

  • Compact dimension of the tip dresser in the cell
  • Avoids operators from getting in the cell for a manual dressing

Programming

  • Simple extraction path: similar to welding point (without curent flow)

Dressing head performance

  • With or without compliance
  • Rotation speed: 640 tr/min
  • Channel ships collector included
